Trim Router Lift Plate for Makita Woodworking Routers

Designed specifically for cylindrical motor housings.

Please watch the video above for installation instructions.

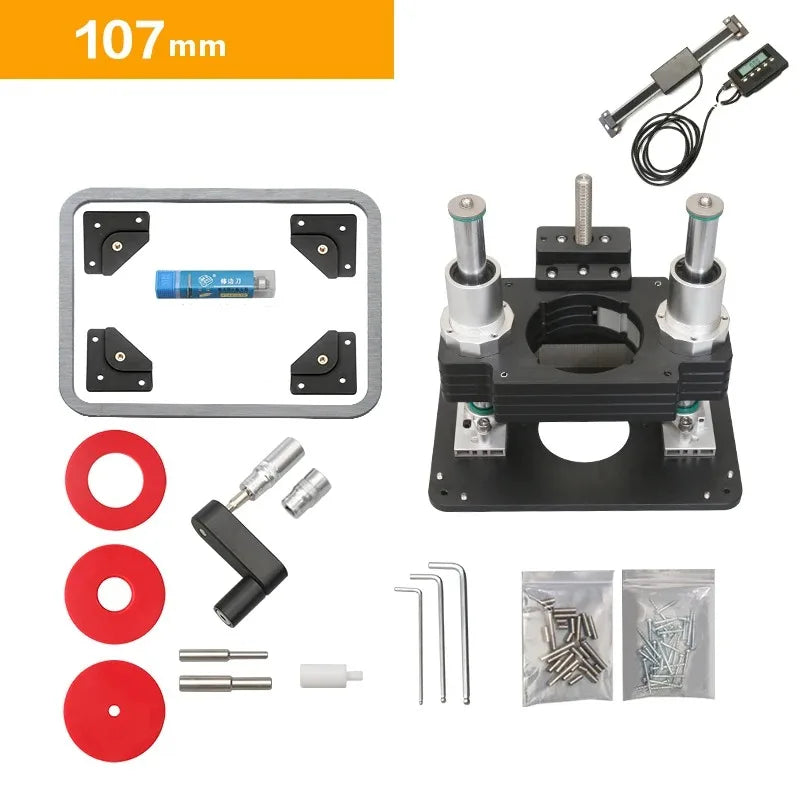

107mmset includes:

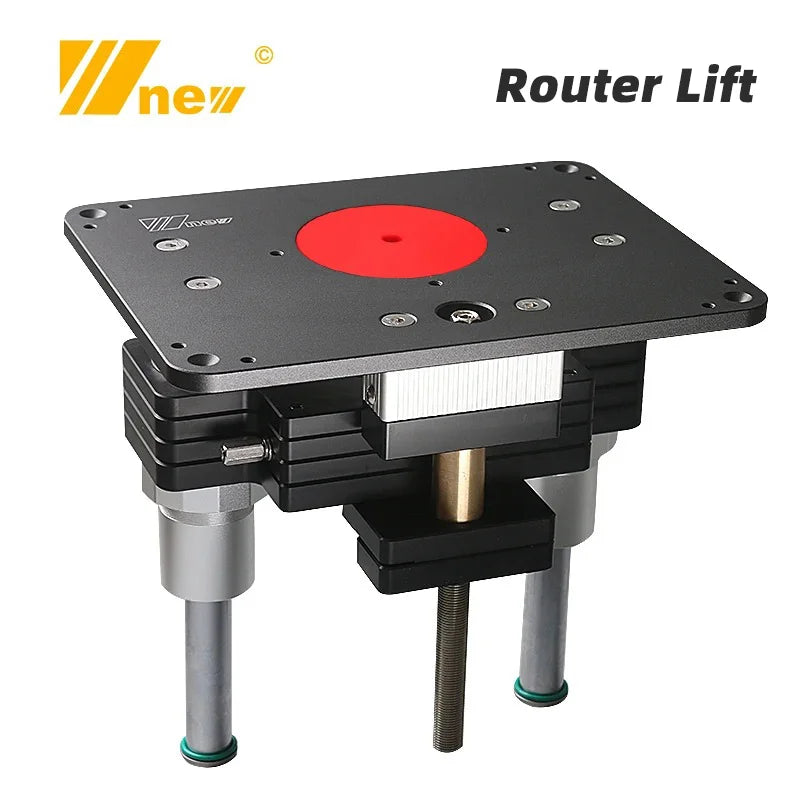

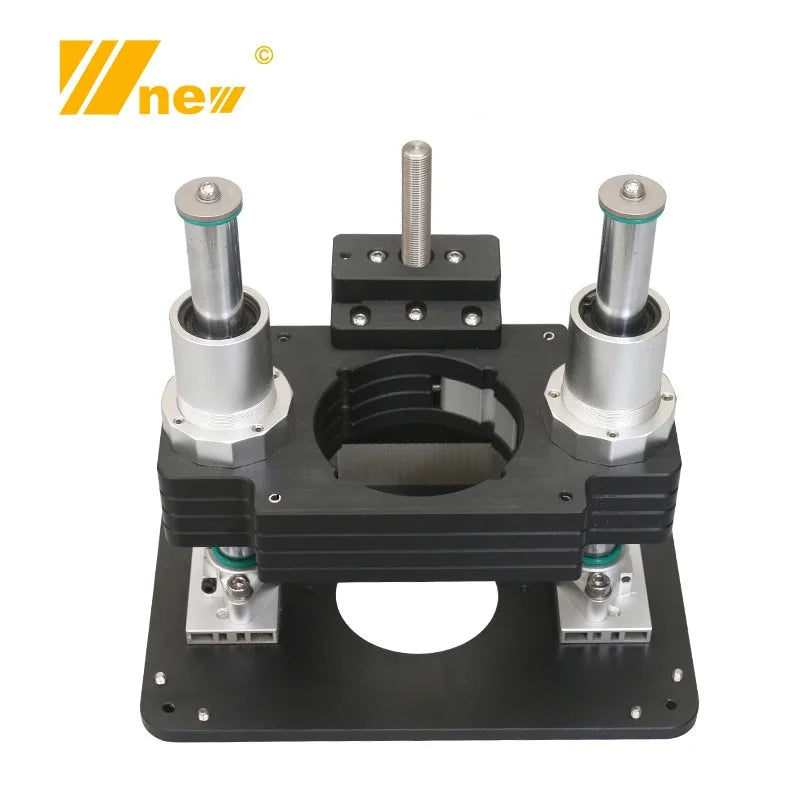

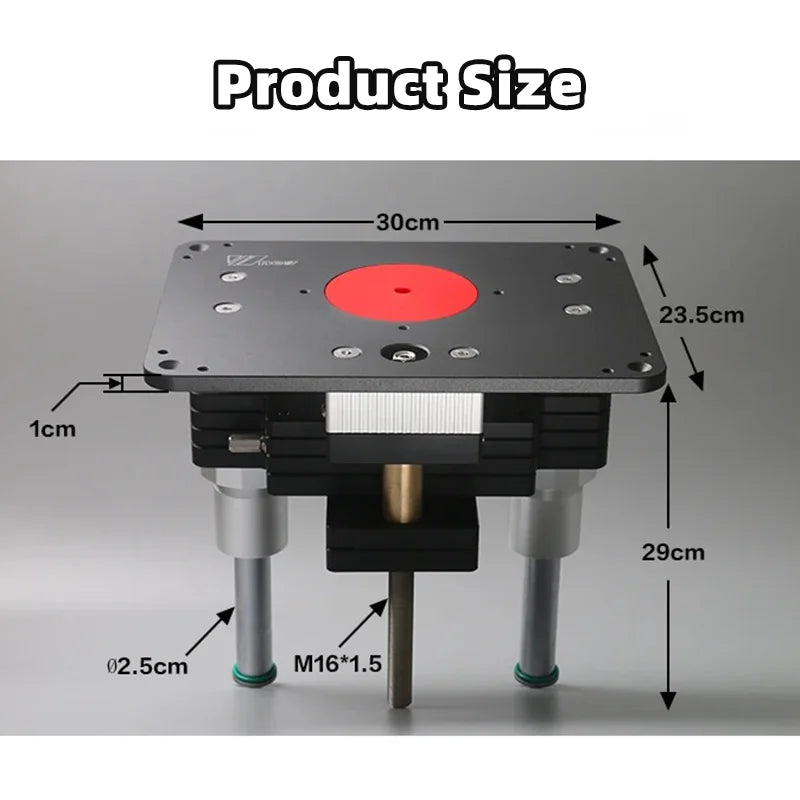

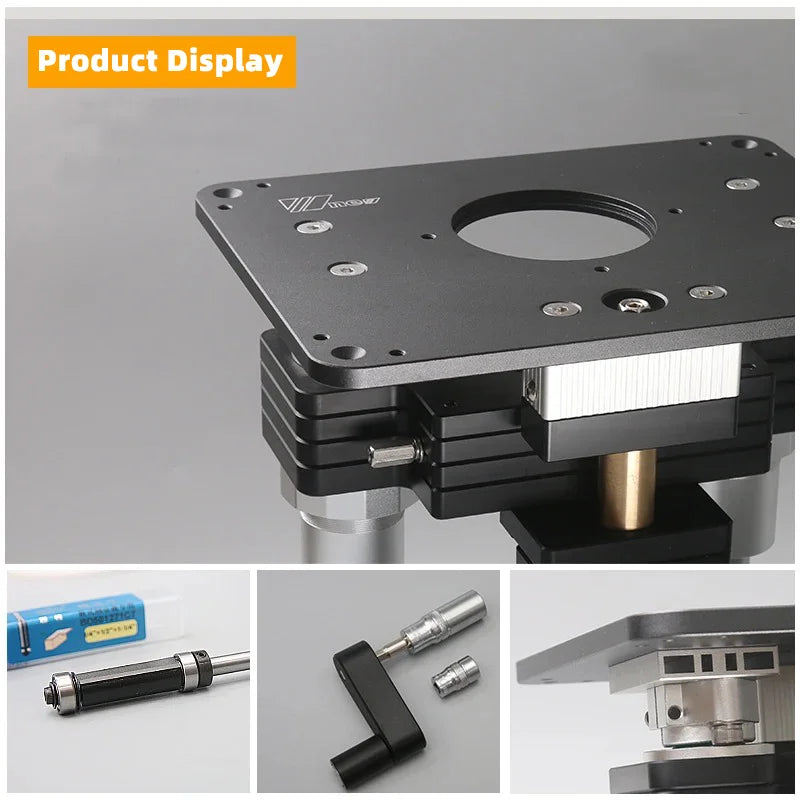

1) Router Lift with strong 10mm Aluminium Router Plate

2) Template for making the opening into the router table

3) 1PCS Double Bearing Router Trimming Bit

4) 4PCS corner feet for Plate Adjustment

5) 1PCS removable pivot pin, for safe freehand work

6) 3PCS Ring Inserts with different size of center holes

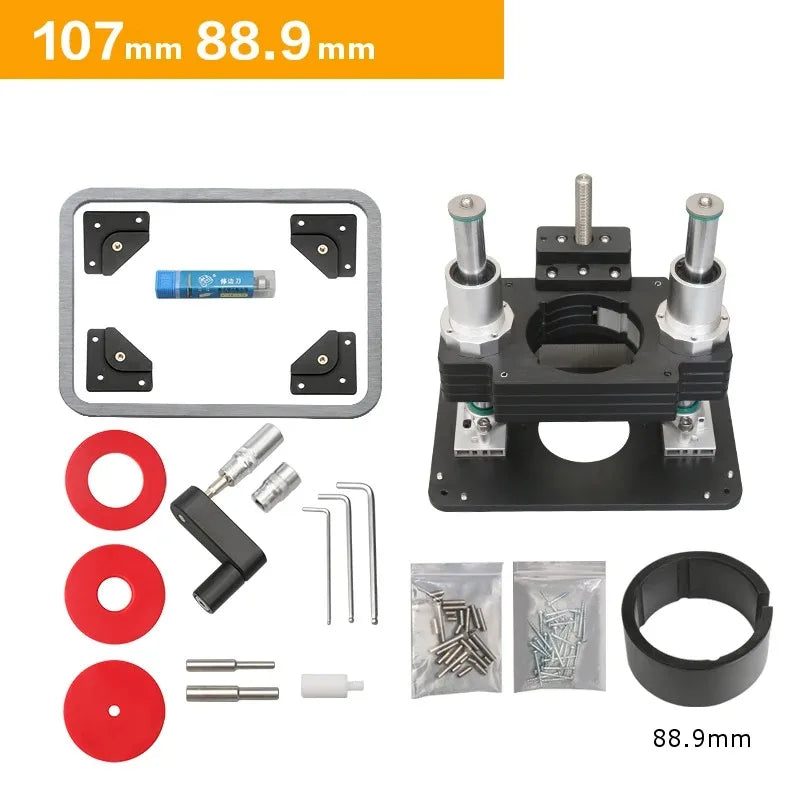

107mm to 88.9mm: everything above + one reducing collar of 88.9mm

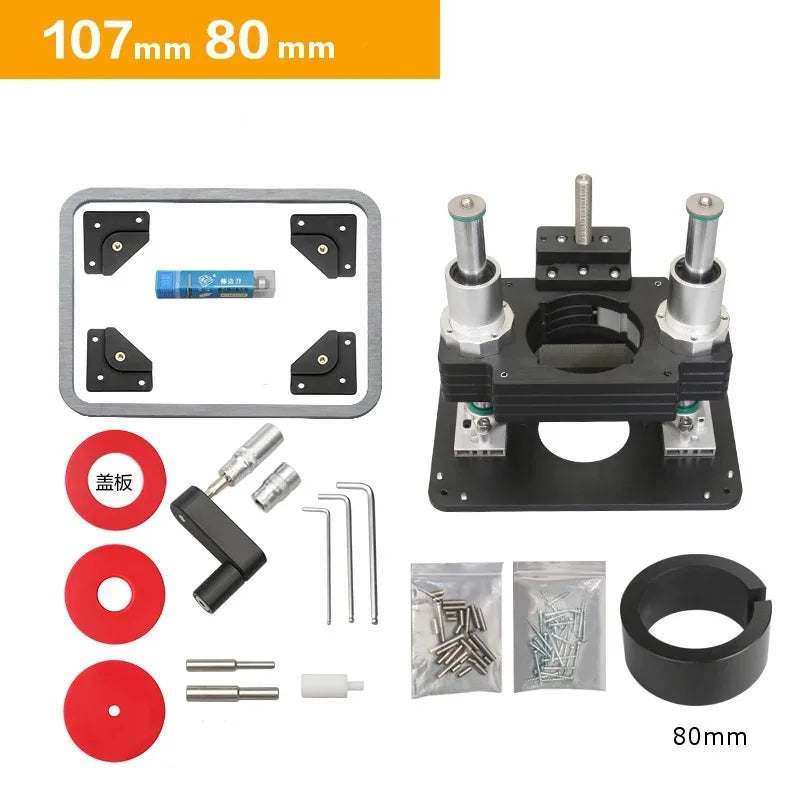

107mm to 80mm: everything above + one reducing collar of 80mm

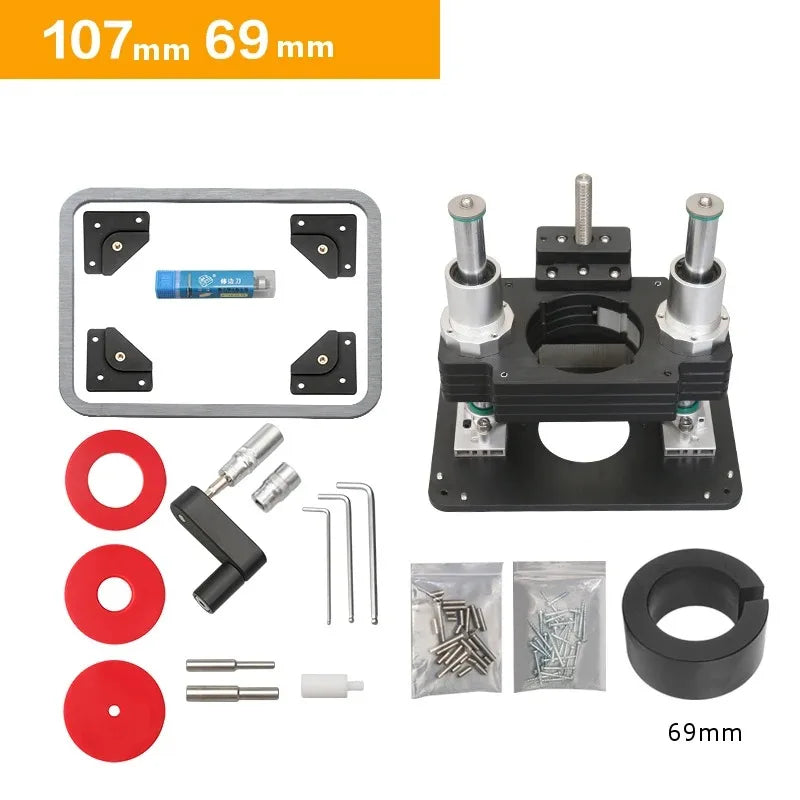

107mm to 69mm: everything above + one reducing collar of 69mm

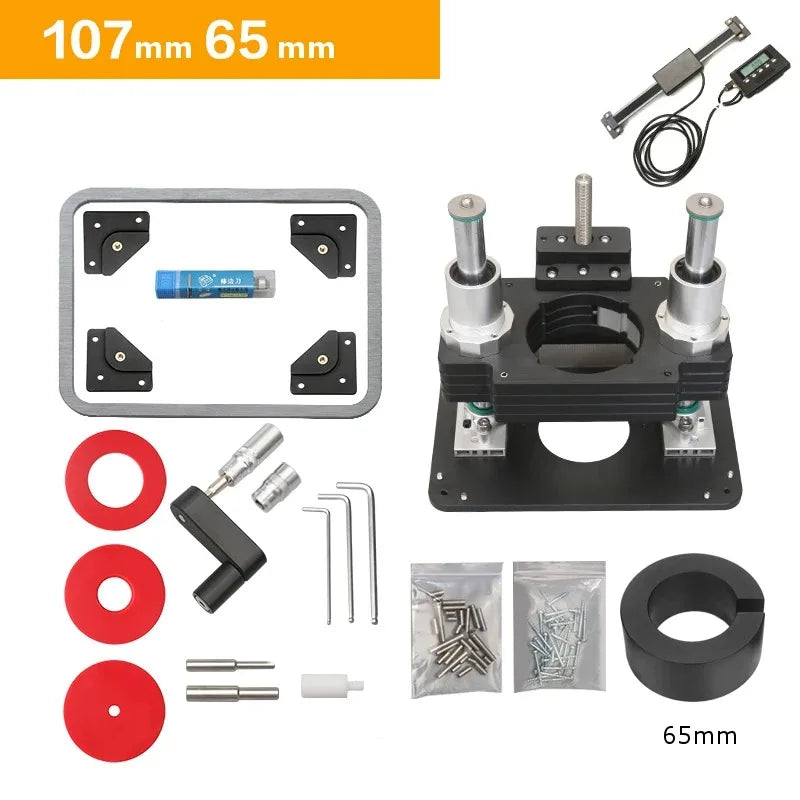

107mm to 65mm: everything above + one reducing collar of 65mm

The router lift is made to fit the following router models:

1. All 4.2″ (107mm) diameter motor can be fitted right away from the box, without need of reducing collar.

In this range are usually 3-1/4 HP motors like:

PORTER CABLE 7518 / 7519 series

And it’s a perfect match with our heavy duty 3-1/4HP router motor. (clickhere).


2. All 3-1/2″ (88.9mm) diameter motors, like:

PORTER CABLE 690 / 890 series

BOSCH 1617 /1618 / GMF 1400 CE

DEWALT 610 / 616 / 618

Devon 1316-1(click on the link to buy it)

DRAPER ROUTER EXPERT

3. All 80mm diamter motors, like most of the CNC spindle moulders on the market.

4. All 69mm diameter motors, like:

DEWALT DWP611 / DCW600

5. All 65mm diameter motors, like:

Makita 700C / RT0702C / DRT50, Dongcheng MIP-FF04-6

Note:

The router lift can ONLY fit for the router model we listed above or motors with the given diameters.

If your routers are not from the list above,please measure or determine carefully the diameter of your motor housing, and purchase accordingly.
