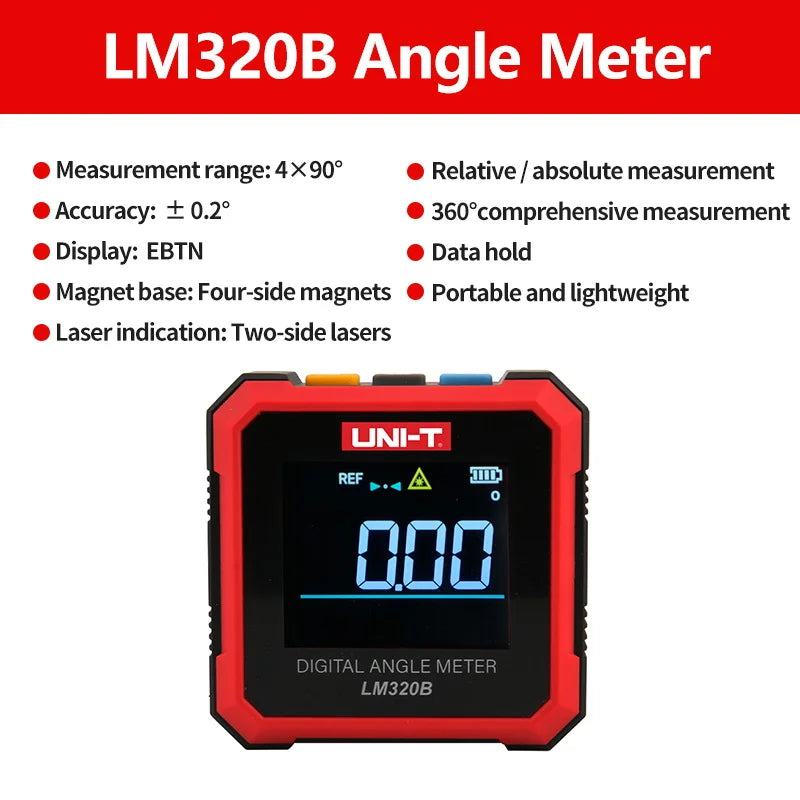

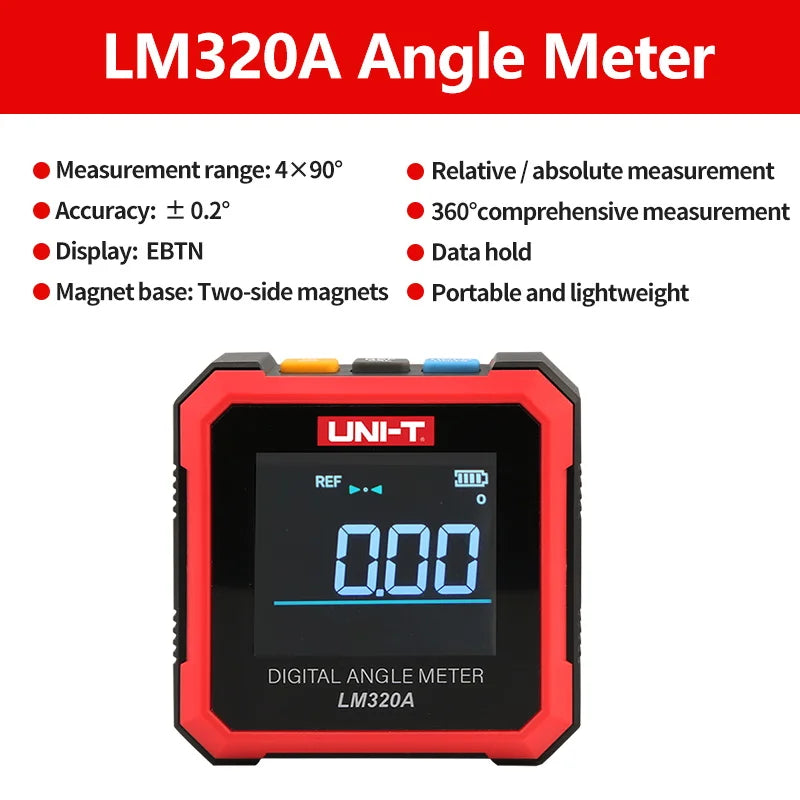

LM320A LM320B Angle Meter
LM320 series digital angle meters are used to measure the precise angle in a variety of applications, designed with 2/4 sided magnetic bottom, and two-side laser design (LM320B) makes the measurement more accurate and convenient! This series can be used in manufacturing, home decoration/DIY, and other fields requiring accurate angle measurements.

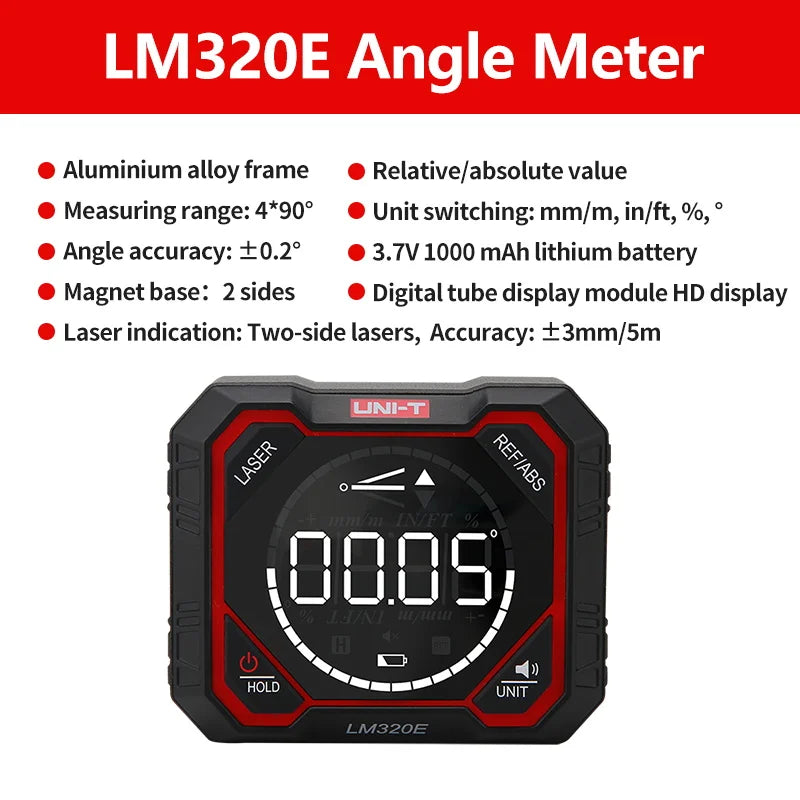

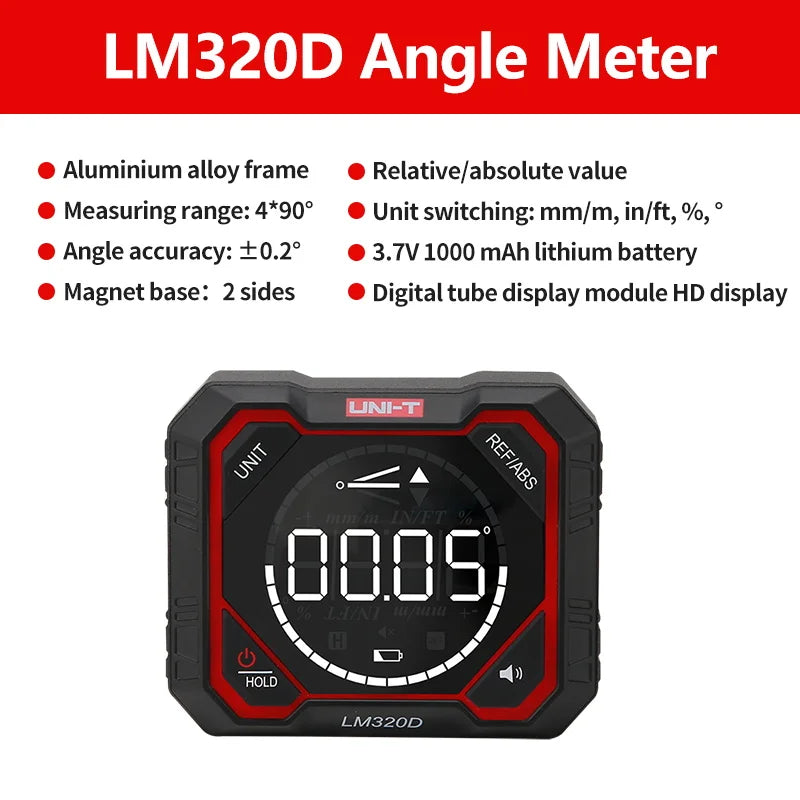

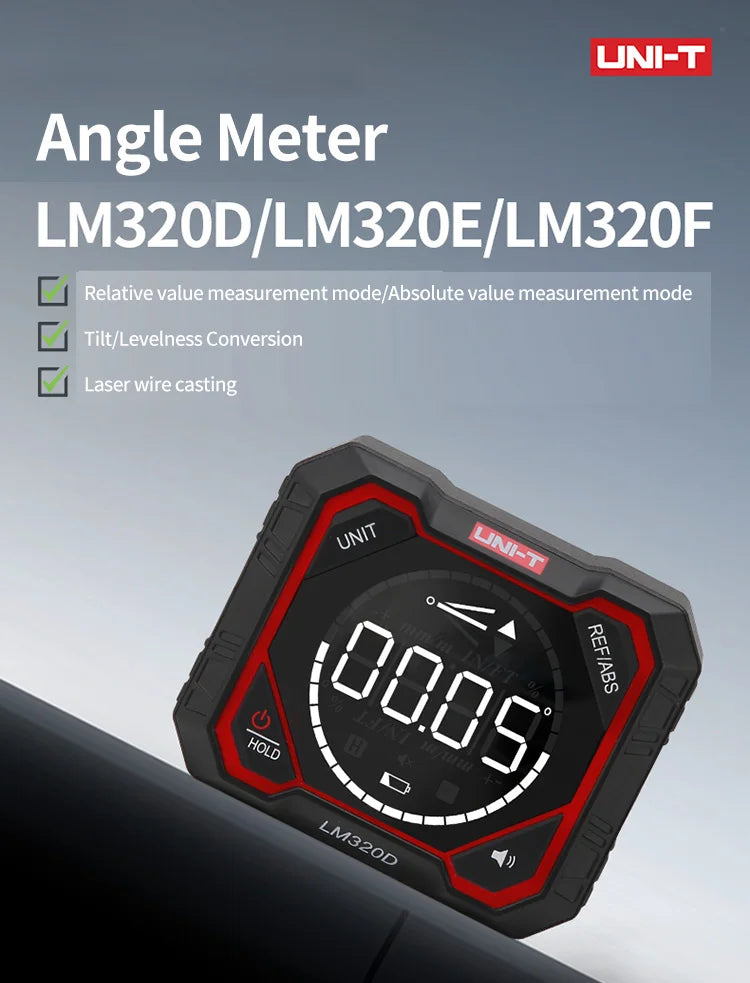

LM320D LM320E LM320F Angle Meter
The new LM320 series is a lightweight and portable angle meter with a durable aluminum alloy frame. It features a high-definition color display with automatic screen rotation, supporting a full 4×90° measurement range. The device provides real-time tilt angle data and is equipped with a magnetic base for easy and stable positioning. It is widely used in engineering, construction, and mechanical installation fields.
Features
1. Relative / absolute measurement
2. 360°comprehensive measurement

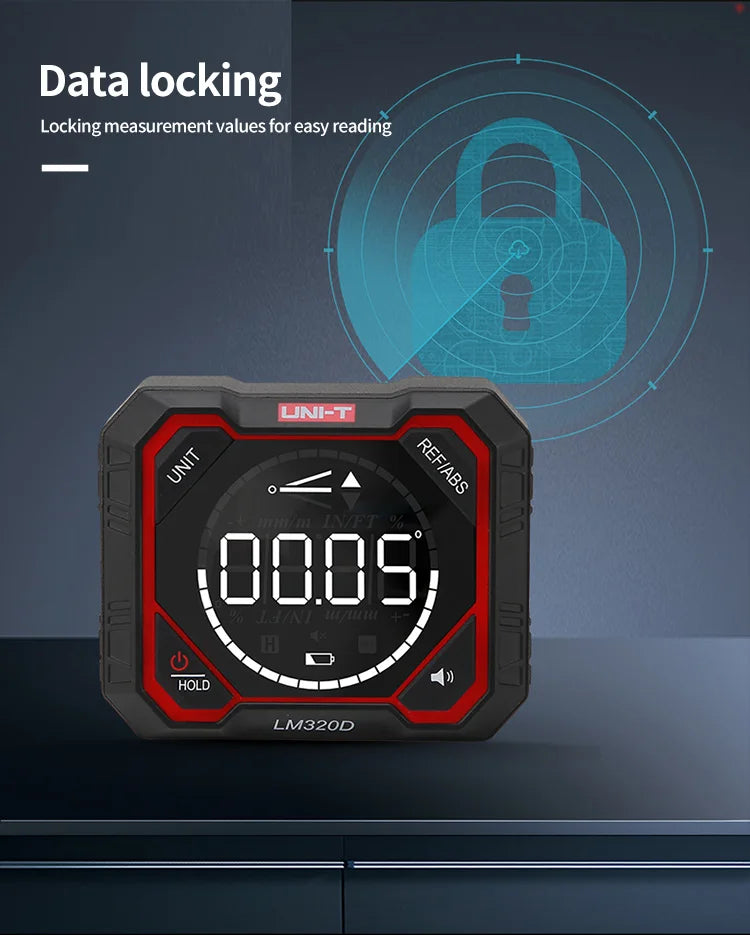

3. Data hold
4. Portable and lightweight
5. Unique laser design
6. With magnetic base at the bottom
7.3.7V rechargeable lithium battery
8. Reverse display screen with backlight
Applications:
LM320 series can be used in manufacturing, home decoration/DIY, and other fields requiring accurate angle measurements.
|

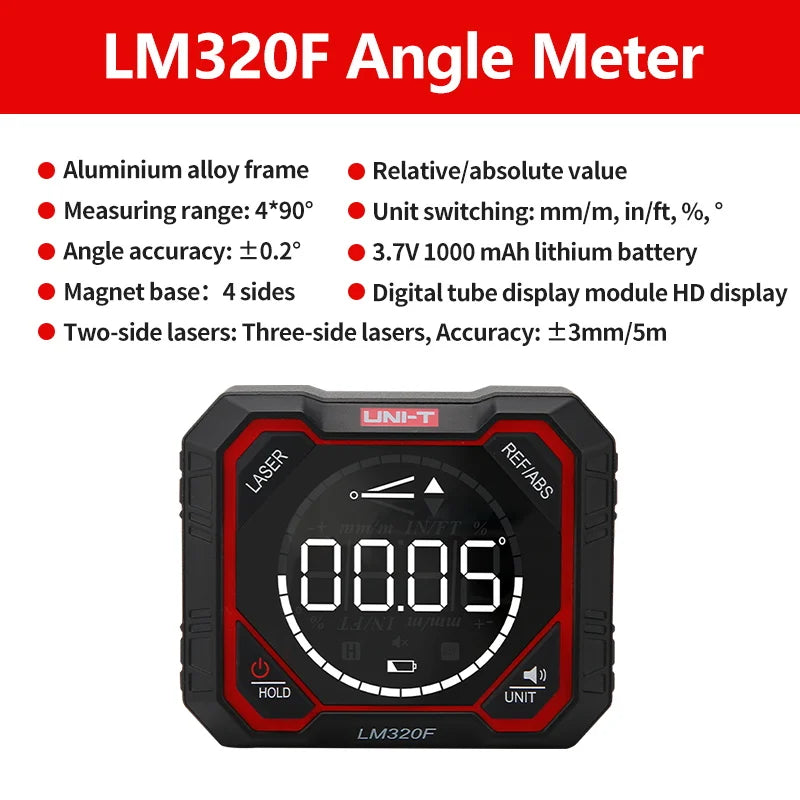

Specifications |
|||
|
Models |
LM320D |
LM320E |
LM320F |
|
Measurement Range |
4*90° |
4*90° |
4*90° |
|
Resolution |
±0.05° |
±0.05° |
±0.05° |
|
Angle Accuracy |
±0.2° |
±0.2° |
±0.2° |
|
Repeatability |
±0.2° |
±0.2° |
±0.2° |
|

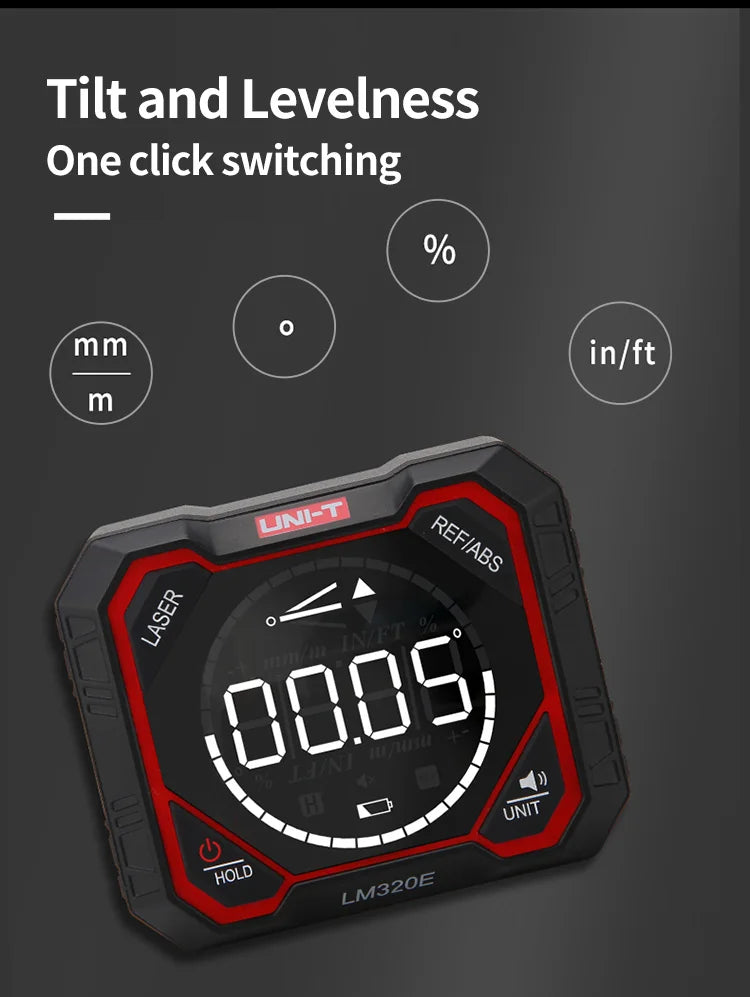

Unit |
°; %;mm/m; in/ft. |
||
|

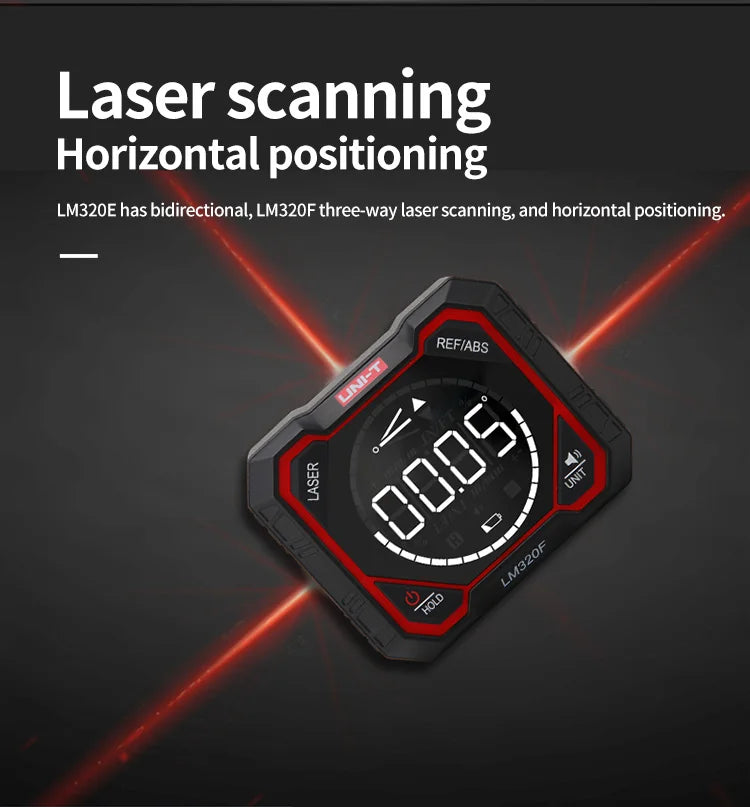

Laser Lines |
|
2 lines |
3 lines |
|
Laser Accuracy |
|
±3mm/5m |
|
|
Magnetic Base |
Two-sided magnetic (Bottom and rear) |
Two-sided magnetic (Bottom and rear) |
Four-sided magnetic (Bottom, rear,left and right) |
|
Relative/Absolute Angle Measurement |
√ |
||
|
Angle Hold |
√ |
||
|
Screen Rotation |
√ |
||
|
Auto Power Off |
√ |
||
|
Materials |
Al-alloy frame +ABS |
||
|
Power Supply |
1000mAh lithium battery |
||
|
Working Temperature |
0℃~ +50℃ |
||
|
Laser Class |
|
Class 2 |
|
|
Laser Type |
|
630-670nm,<1mW |
|
|
Battery Life |
14h |
8h |
6h |
|
Characteristics |
|||
|
Power Supply |
1000mAh lithium battery |
||
|
Product Size |
83.5*70*35.5mm |
||
|
Product Net Weight |
About 180g |
||
|

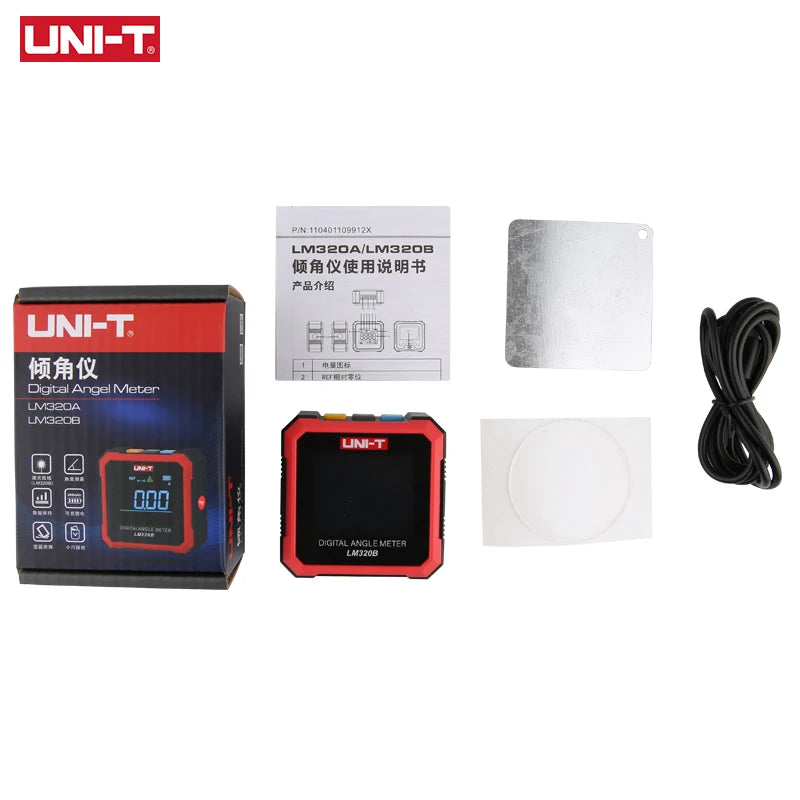

Standrad Accessories |

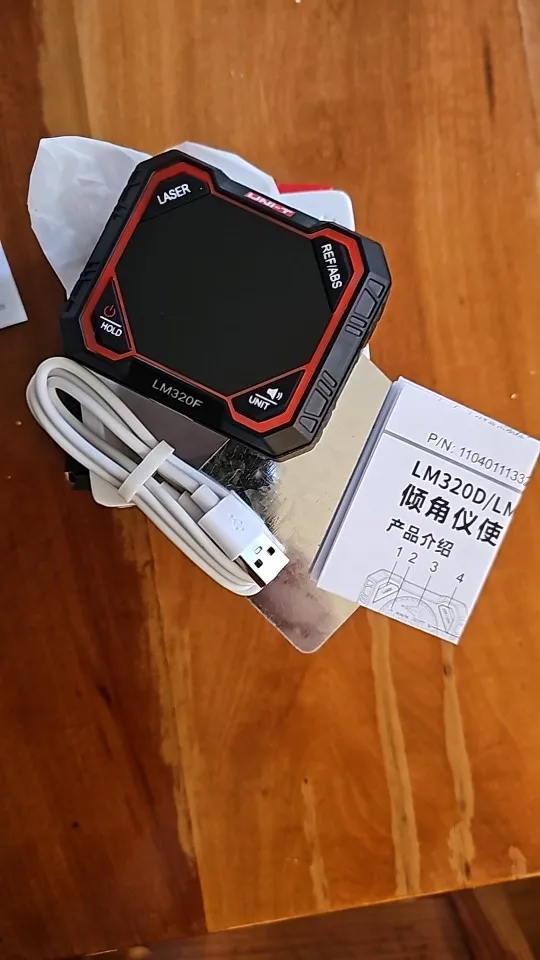

Angle Meter*1, Type-C Cable*1, Gift Box*1, User Manual*1 |
||

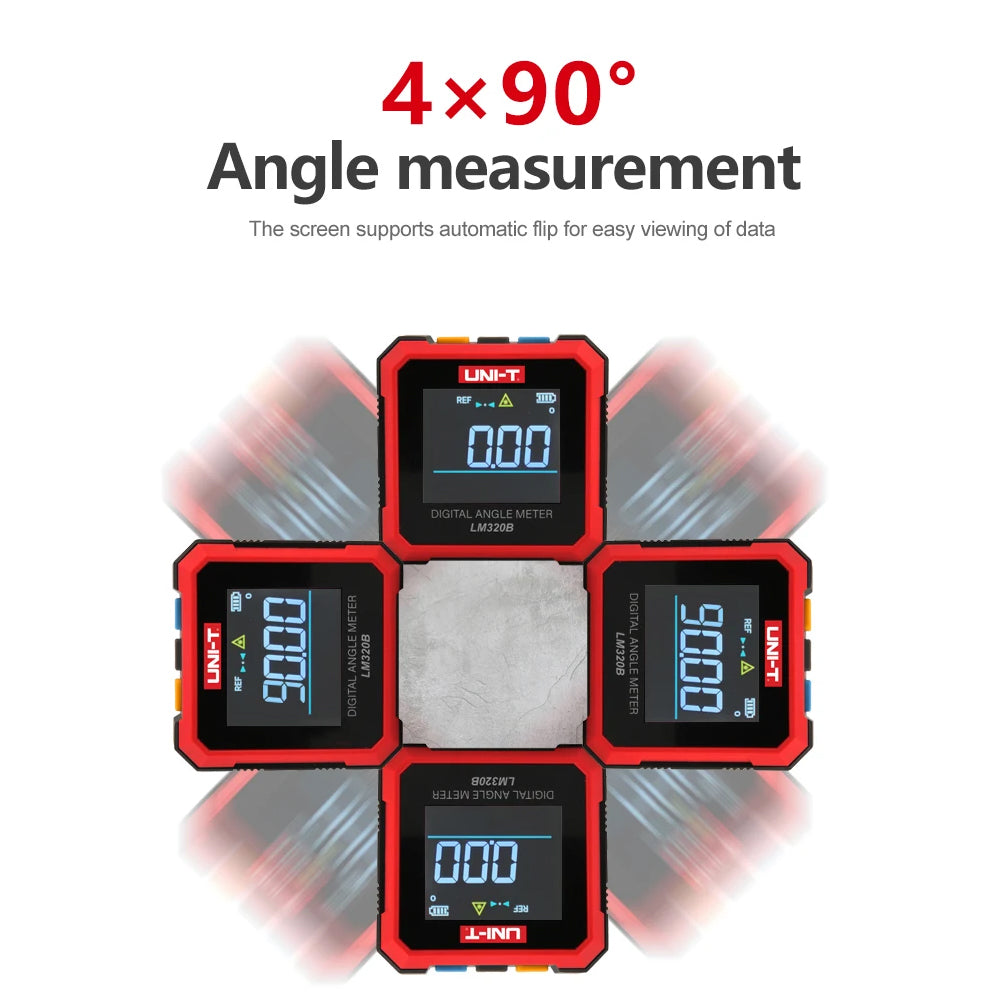

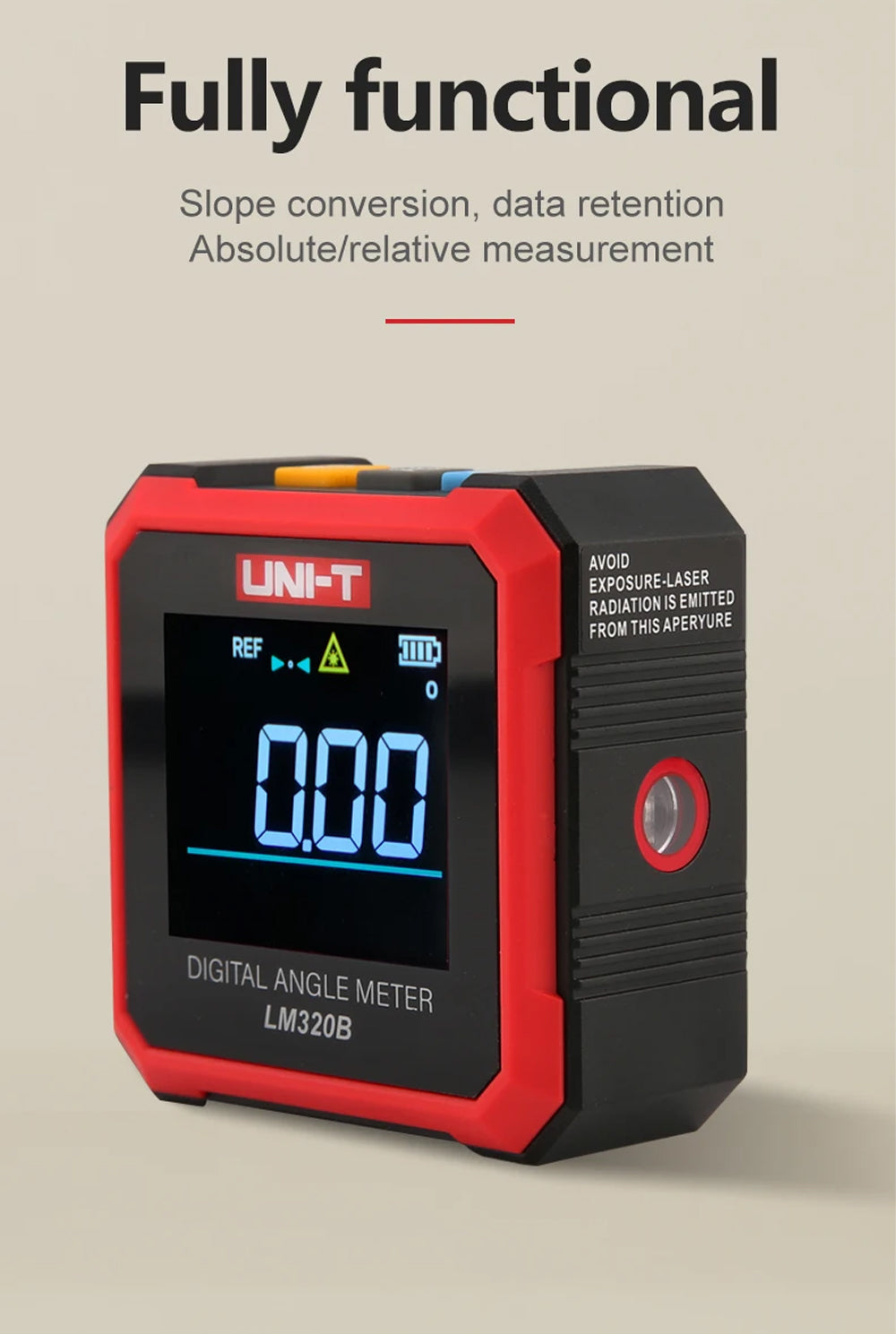

360°comprehensive measurement

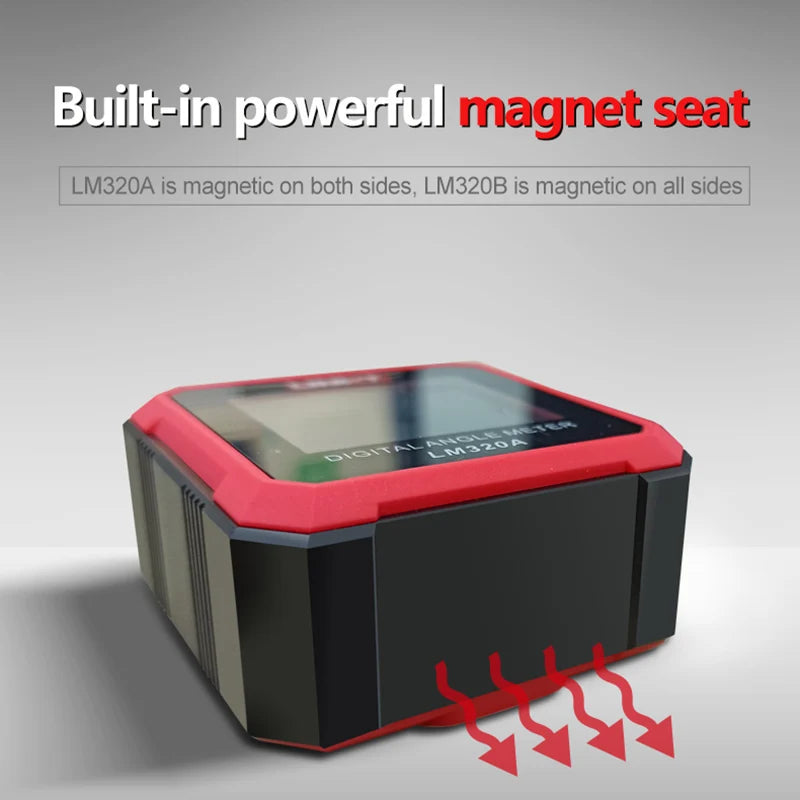

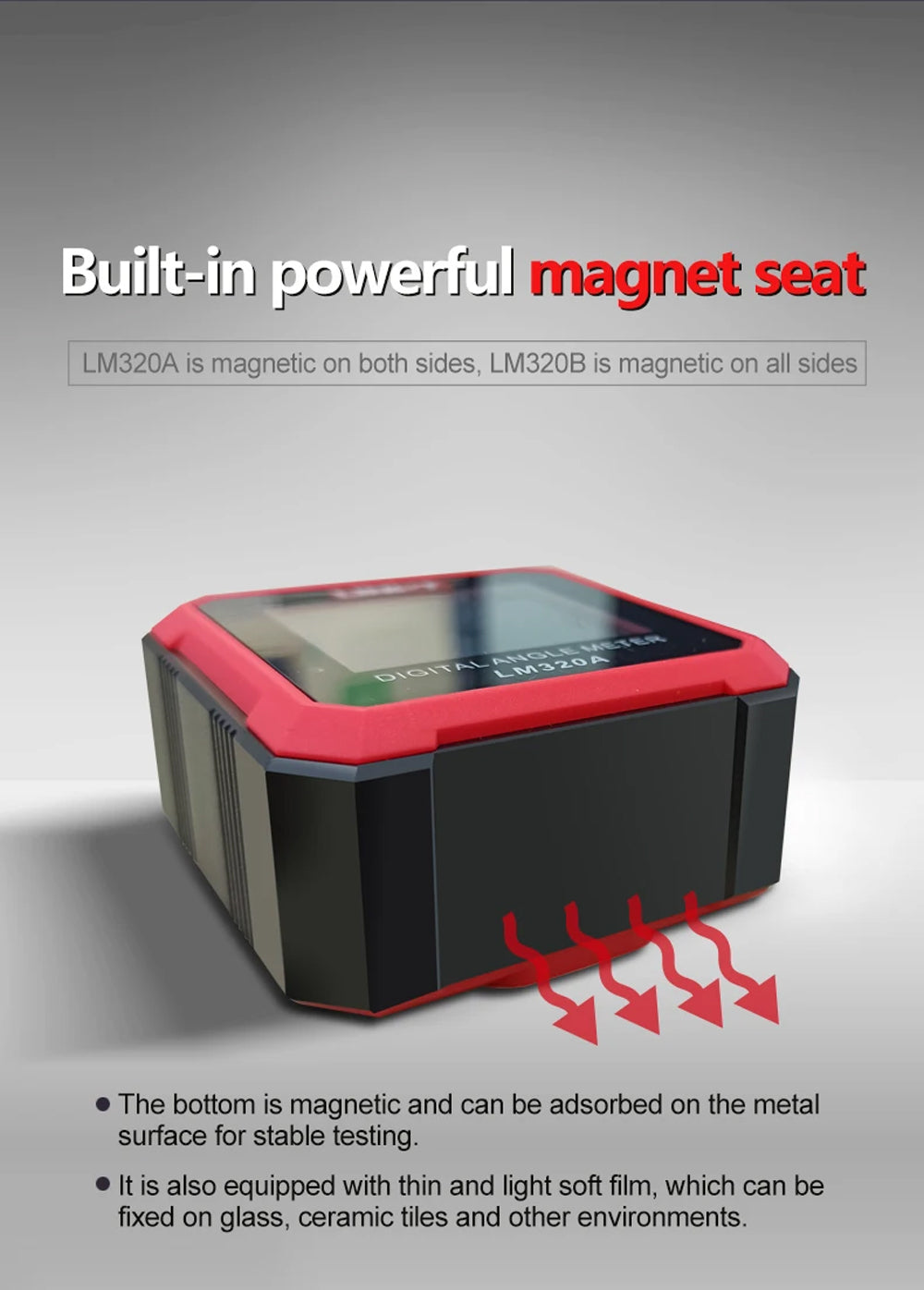

Built-in powerful magnet holder
The product contains a powerful magnet holder, which can be fixed on the metal surface for stable measurement.
The four surfaces of LM320B are magnetic
The two surfaces of LM320A are magnetic

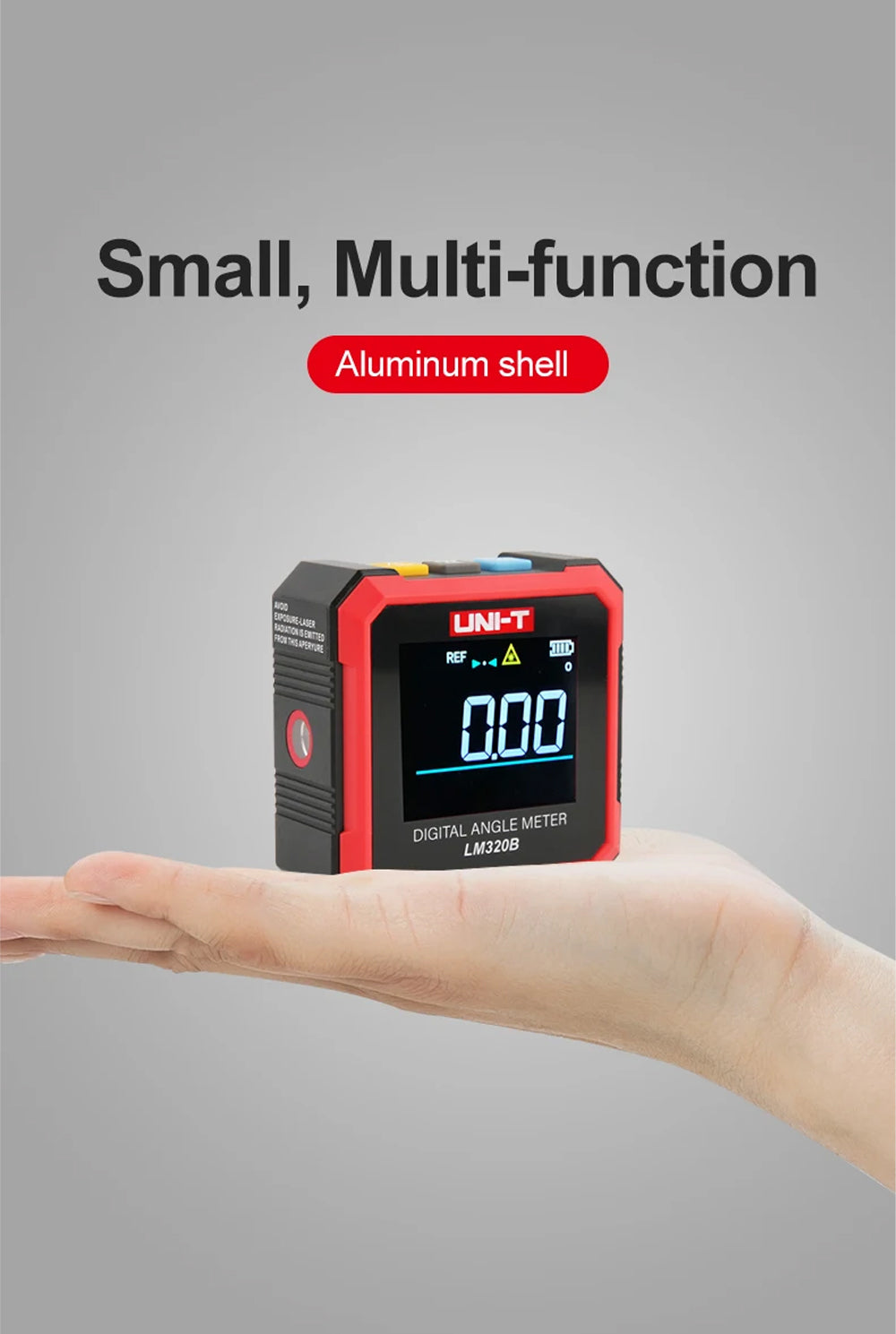

Lightweight, portable, and feature-rich

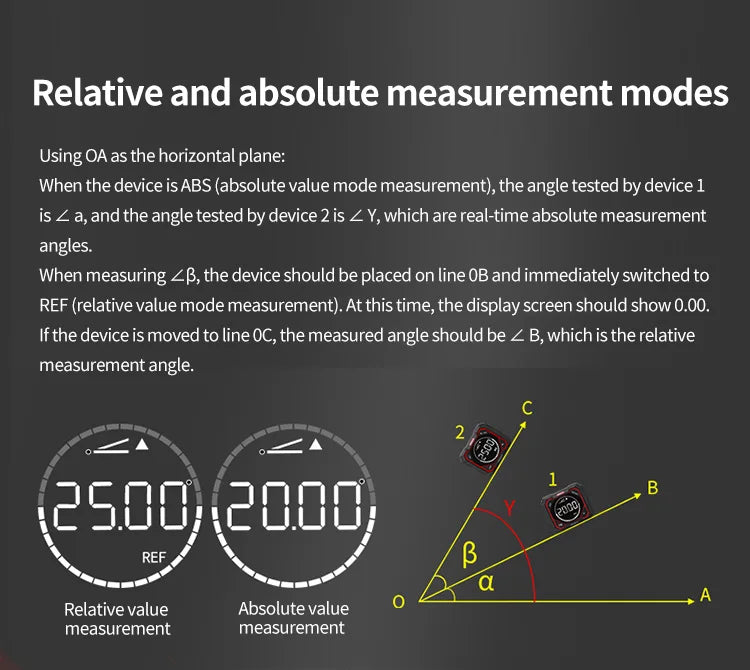

Relative value/absolute value measurement mode/angle measurement/data hold

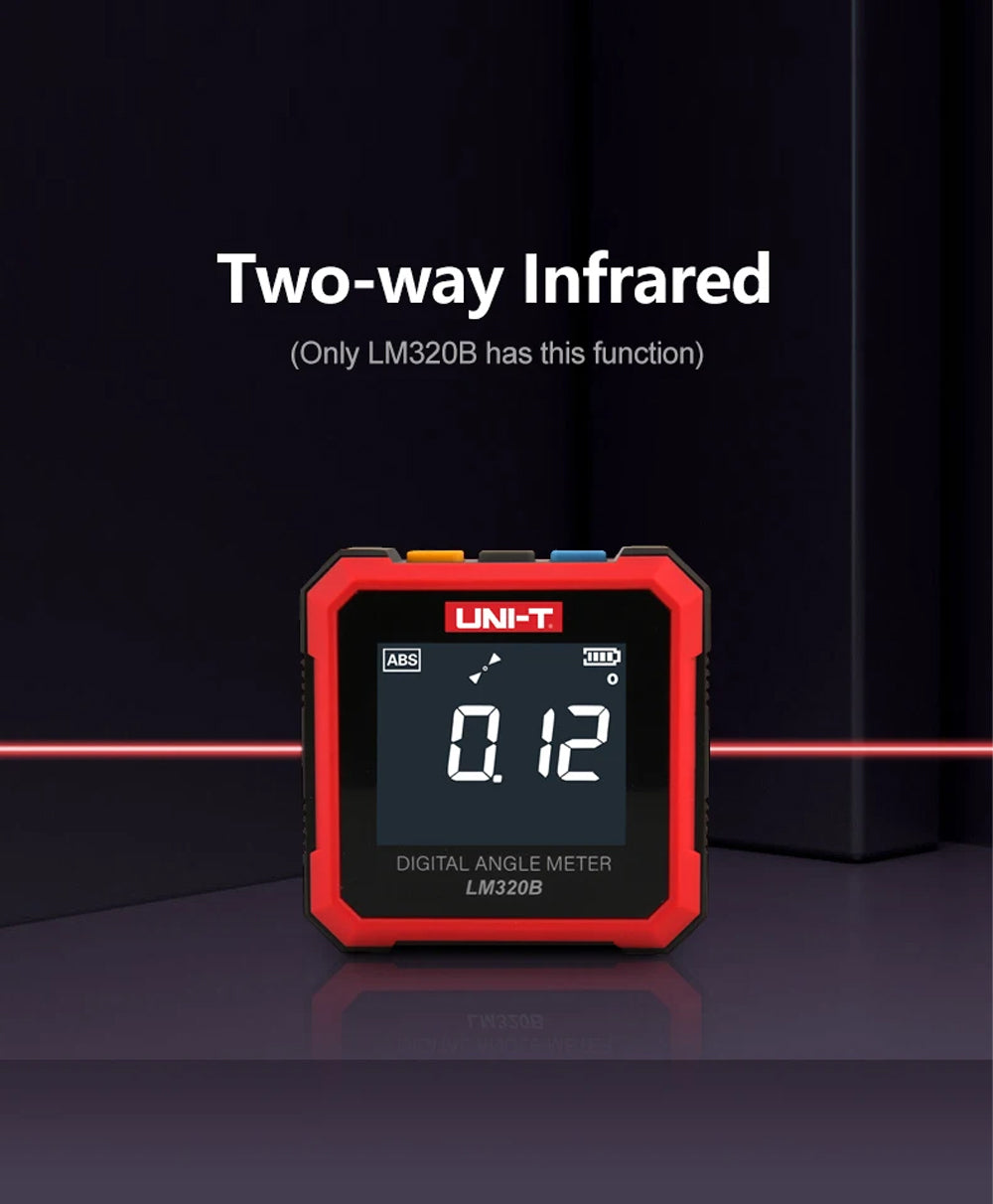

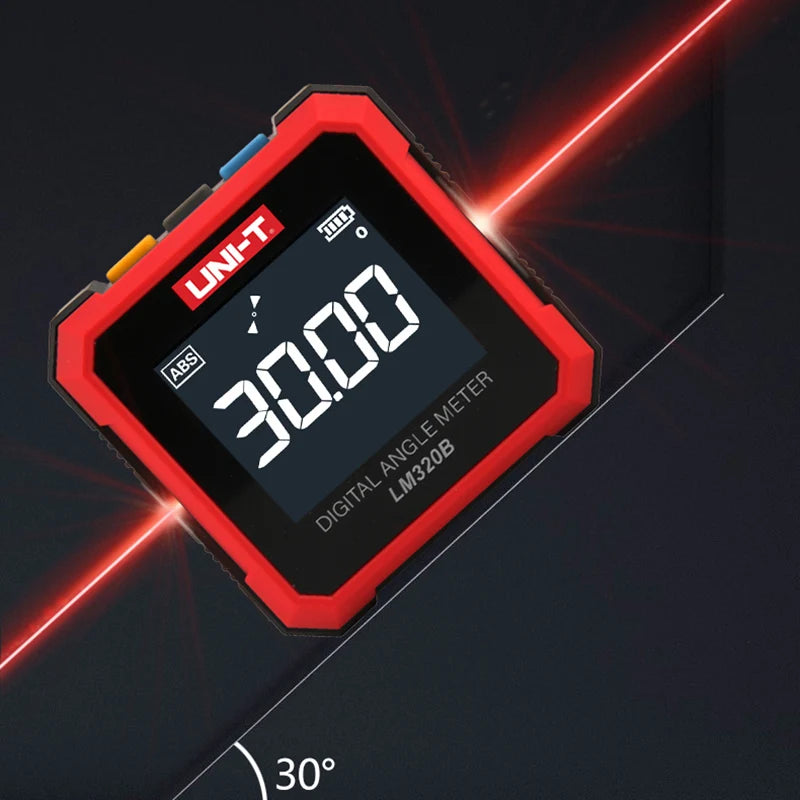

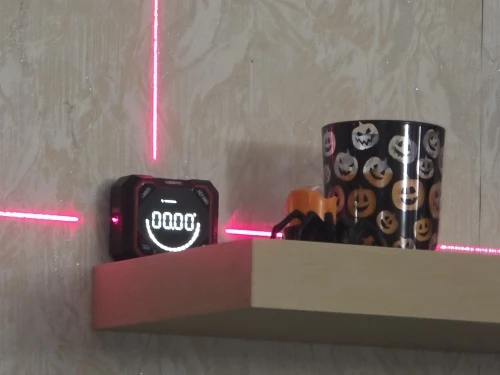

Dual laser design
Only LM320B have

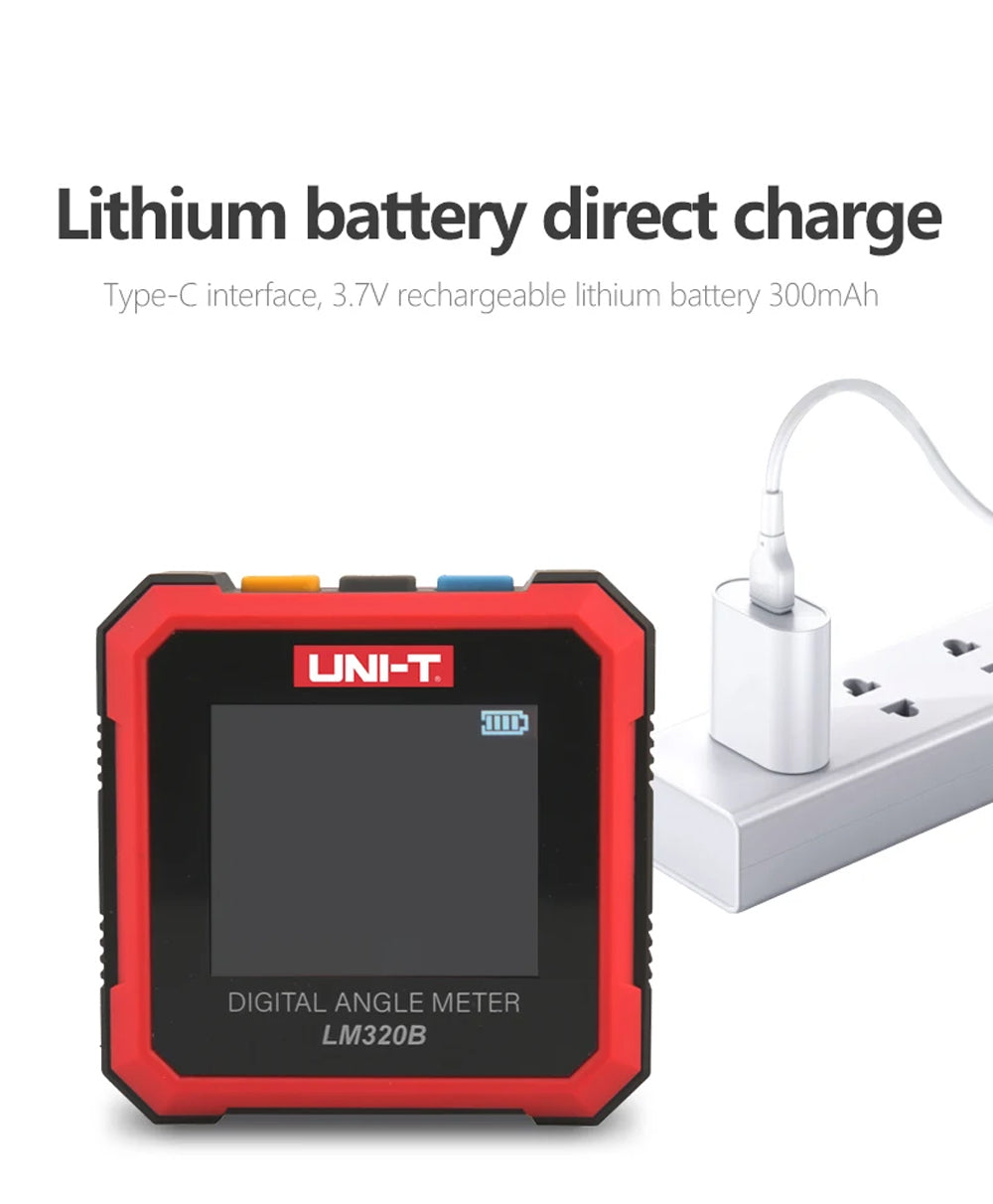

3.7V rechargeable lithium battery

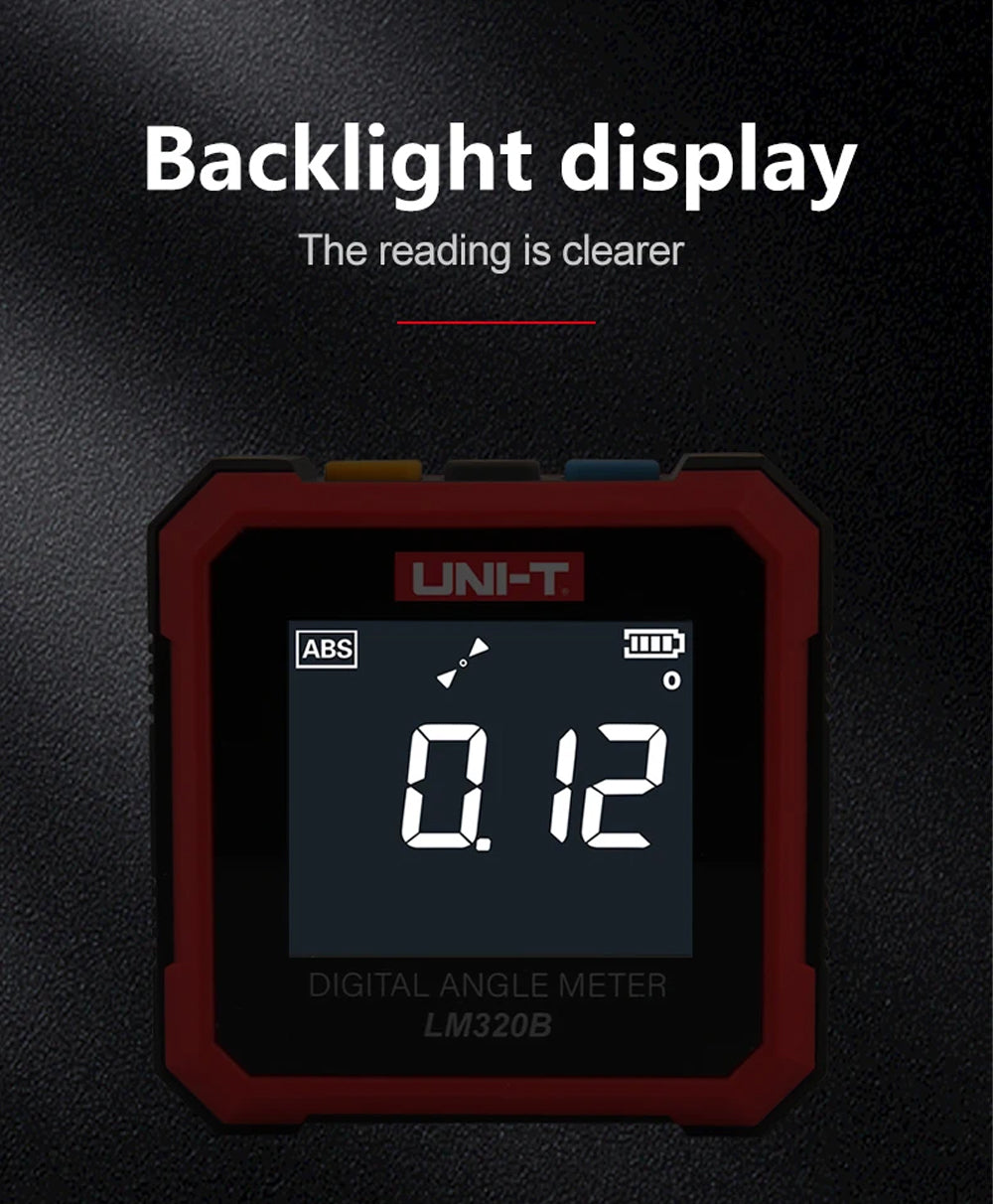

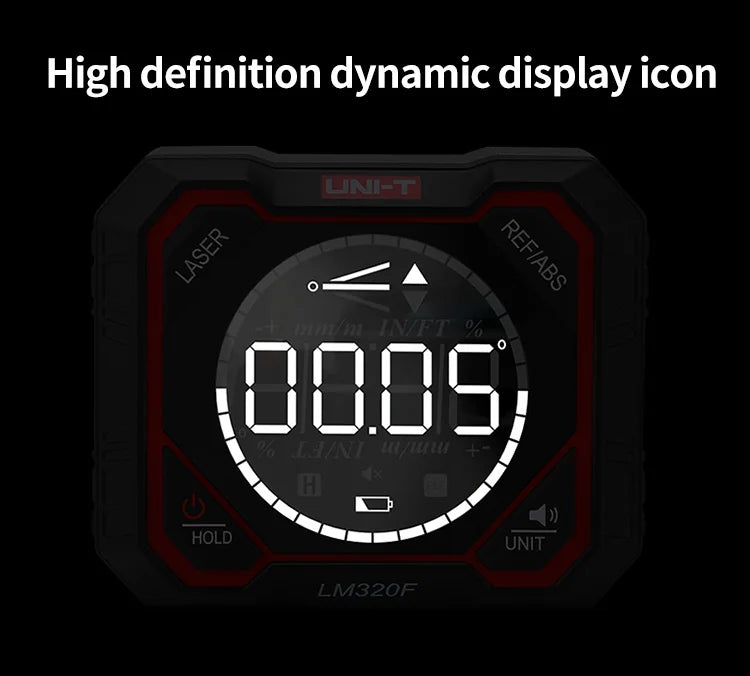

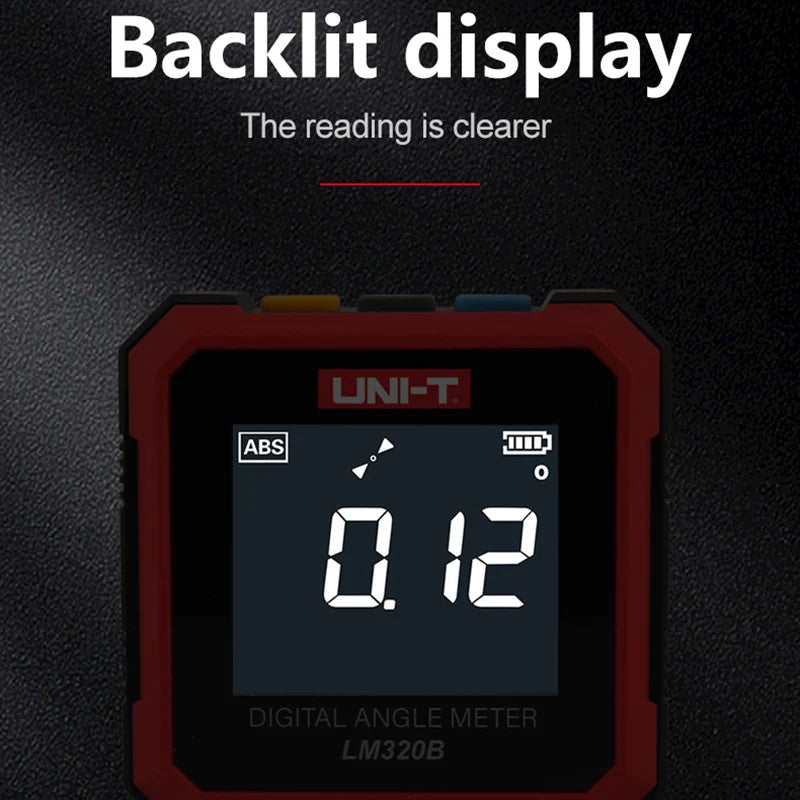

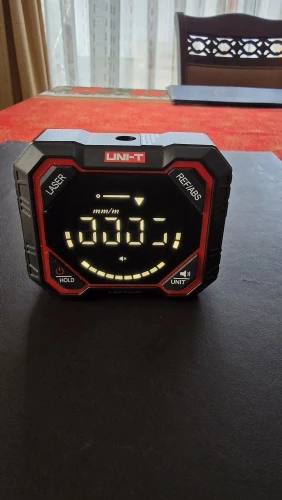

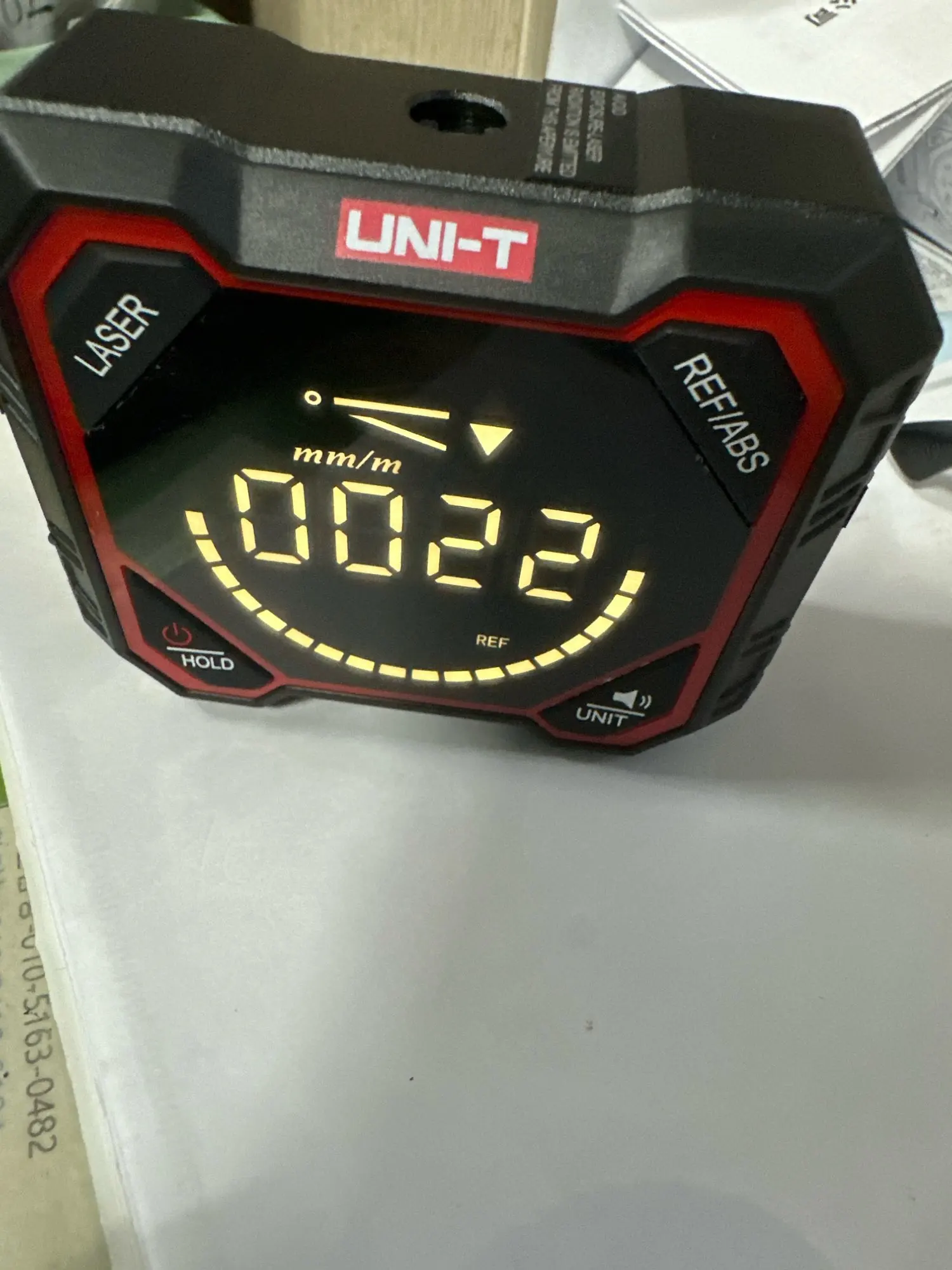

Backlight display
window.adminAccountId=237350169;
Phillis Auer –
Well, only some LEDs don't light up properly.
Britt Gottlieb –
Very fast shipping. ! product according to description. Great quality, good material, and optimal performance. Highly recommended. !
Ivan Jacobs –
Very fine product
Ezra Prosacco –
Shipped quickly. And it arrived very quickly. The product matches the order.
Issac Rice –
Perfect as always, UNI-T is quality. I recommend it. Fast shipping to Spain.
Ute Aufderhar –
Very good team, fast in shipping and a very good brand.
Ivelisse Hackett –
Everything OK! I recommend it.
Chang Doyle –
PERFECT
Marquis Ratke –
Came verry fast. Verry god quality
Wenona Schmeler –
perfect. good quality. I recommend. very serious seller. thank you!
Jeanie Fadel –
cool top 1000 quality thank you
Rolf Hansen –

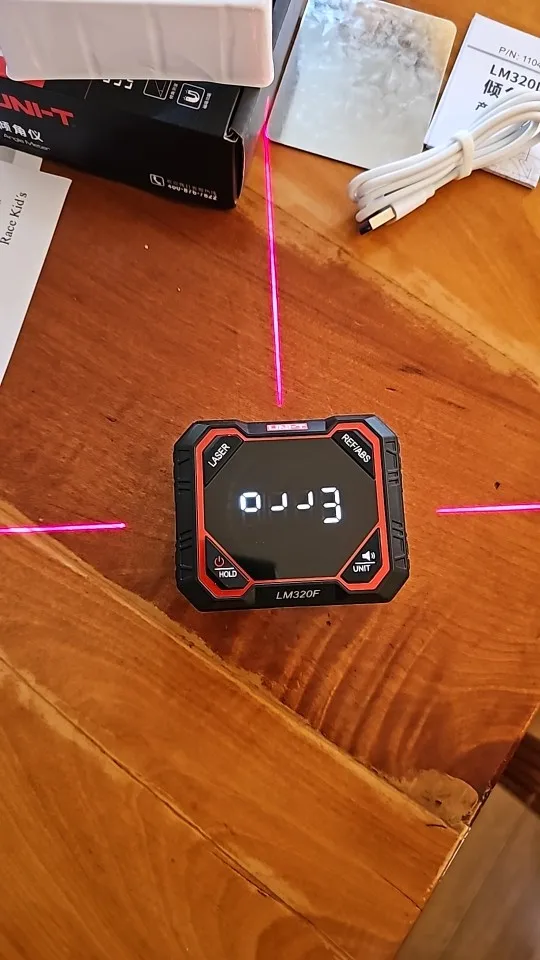

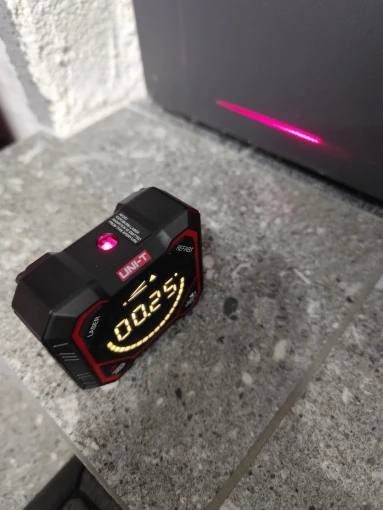

Good quality, fast delivery, many functions, 3 lasers are very convenient.
Marcellus O’Keefe –
Received quickly… Very good device.
Matha Hartmann –
The cost performance is excellent.
Joaquin Huels –
It works well. It's an affordable and useful product.
Shela Heller –
It looks of good quality, just need to test it.
Louanne McDermott –
Excellent 🙏🏻
Lonnie Orn –
The metal plate is not processed, there are burrs around the edge. Instructions only in Chinese.
George Rau –
Perfect product!
Melissa Witting –
Perfect!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Deeann Emard –
Super ok
Christel Bogisich –
Even after charging for 24 hours, it does not fully charge. The indicator keeps blinking. Is this normal behavior?
Shawn Leffler –
super, I recommend
Kimberlie Keeling –
excellent quality, very good product
Mary Emmerich –
It looks very good, I hope it has durability, thank you and the delivery was very fast.
Anjelica O’Keefe –
It's recommend, the seller too
Maxwell Bogisich –

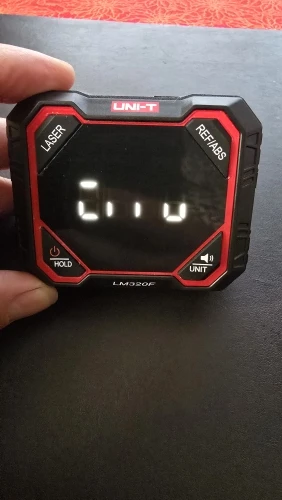

The device cannot stabilize at zero and flashes.
Willis Witting –
Good seller, fast delivery
Emmaline Gerlach –
Works
Brendon Ferry –
I have not been able to verify the accuracy and tolerances of the gauge, but it appears to be a high-quality product with excellent finishing.
Veronika Medhurst –
I left it charging for about 12 hours, and still in the stage where I put it, I found that possibly the battery is defective, the device is fine without the battery.
Joaquin Zboncak –
good quality indicator. compact sizes allow you to use it even in hard-to-reach places.
Gail Hackett –
As described.
Terence Mitchell –
Excellent service, fast delivery
George Frami –
good
Alva Fisher –
Received the product as per described and everything looks good.
Chris Wiza –
Very good
Dwight Pouros –
Keeps promises well, fast delivery is good..
Regan Aufderhar –
The device is in good condition and works as it should. It arrived very quickly. I recommend the seller
Gregory McClure –
Very good quality
Hugo Mante –

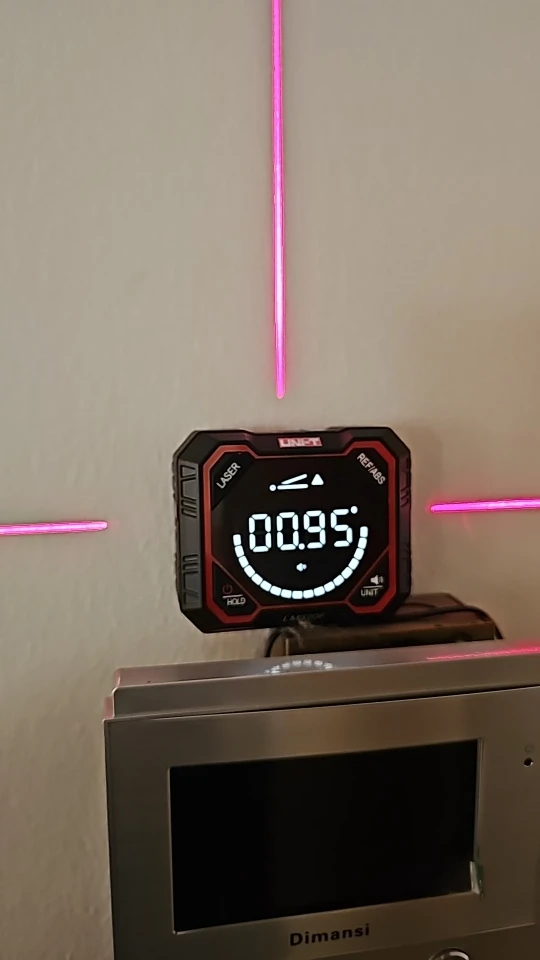

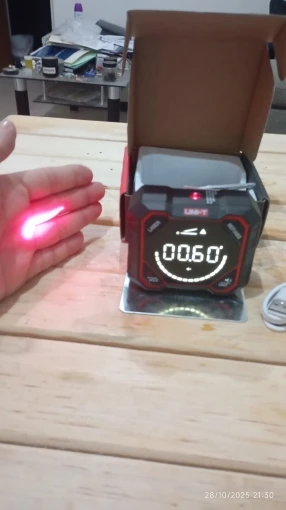

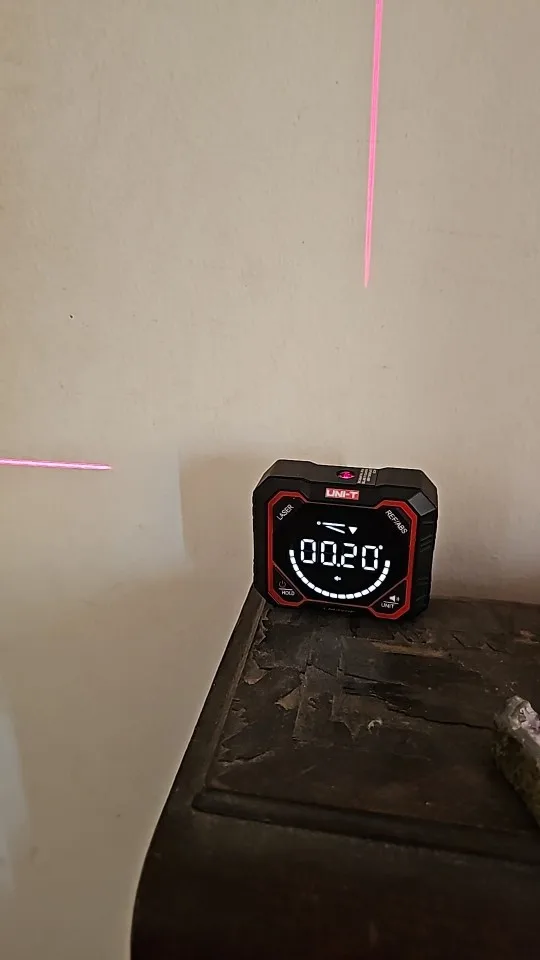

The quality is excellent, the body is made of high-quality aluminum, the laser is cool; it shines not as a point but as a line. I have the previous series too, which is also very cool. I recommend UNI-T quality; it's ⭐️⭐️⭐️⭐️⭐️.
Trista Nikolaus –
excellent level
Kristie Kulas –
Good
Shaunte Cummings –

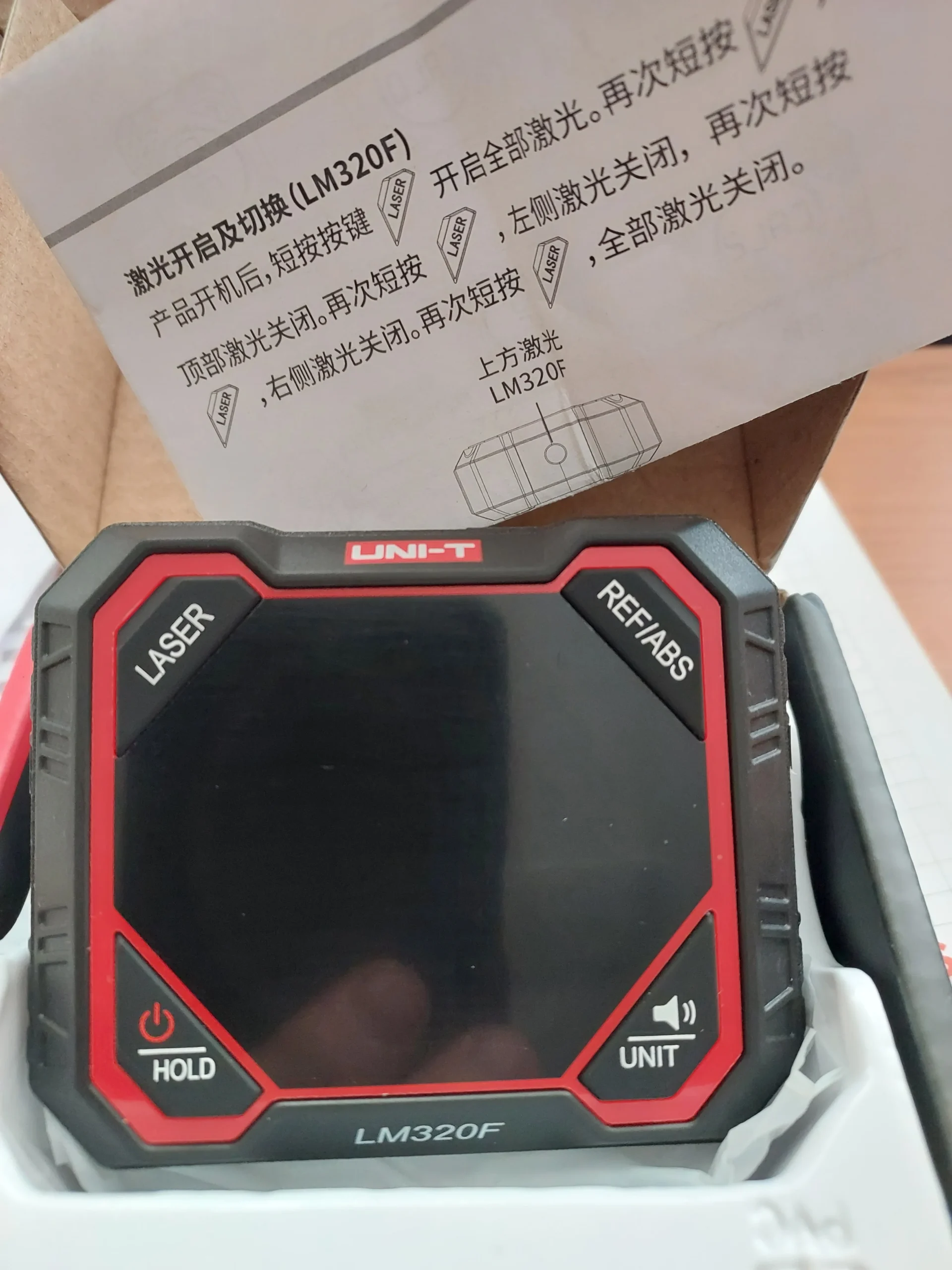

Unfortunately the manual was only in chinese language. 😞
Oliver Abernathy –
Very good
Marvin Herman –
The product arrived damaged, the data cannot be read on its screen, the battery does not charge.
Samuel Dibbert –
Well-made, sturdy, and precise protractor. I am satisfied with the purchase and recommend it. I did not expect such high quality considering the price I paid. It surprised me very positively.
Hilaria Pfeffer –
everything is fine, thank you.
Rocio Kunde –

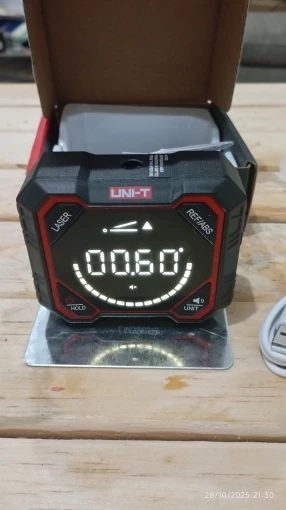

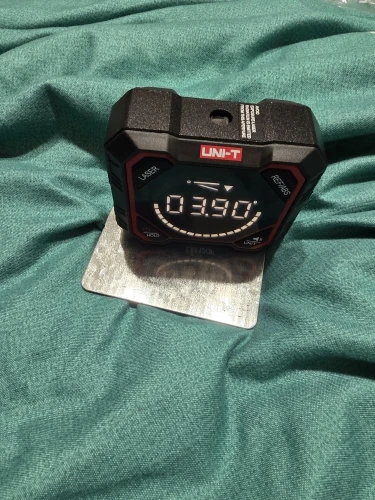

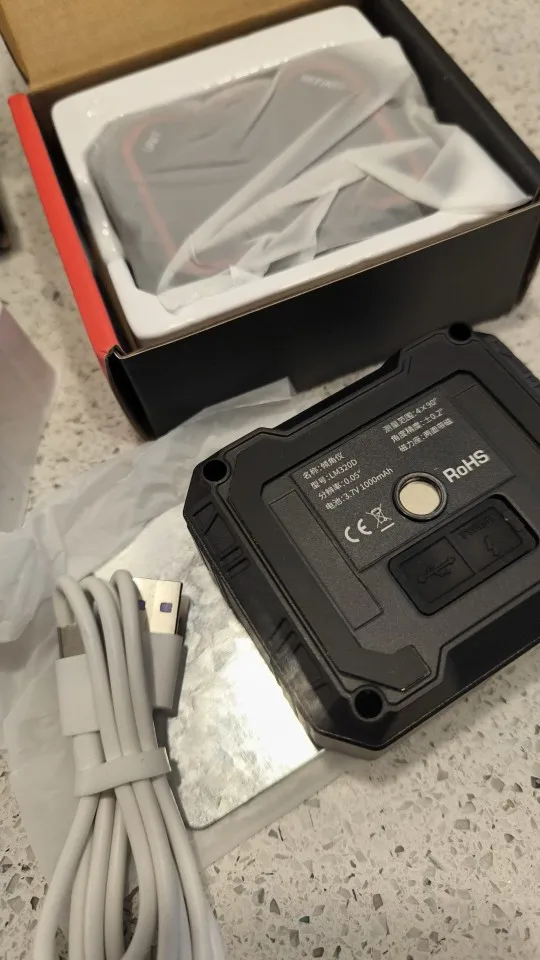

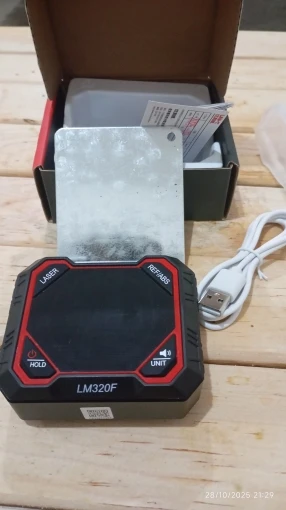

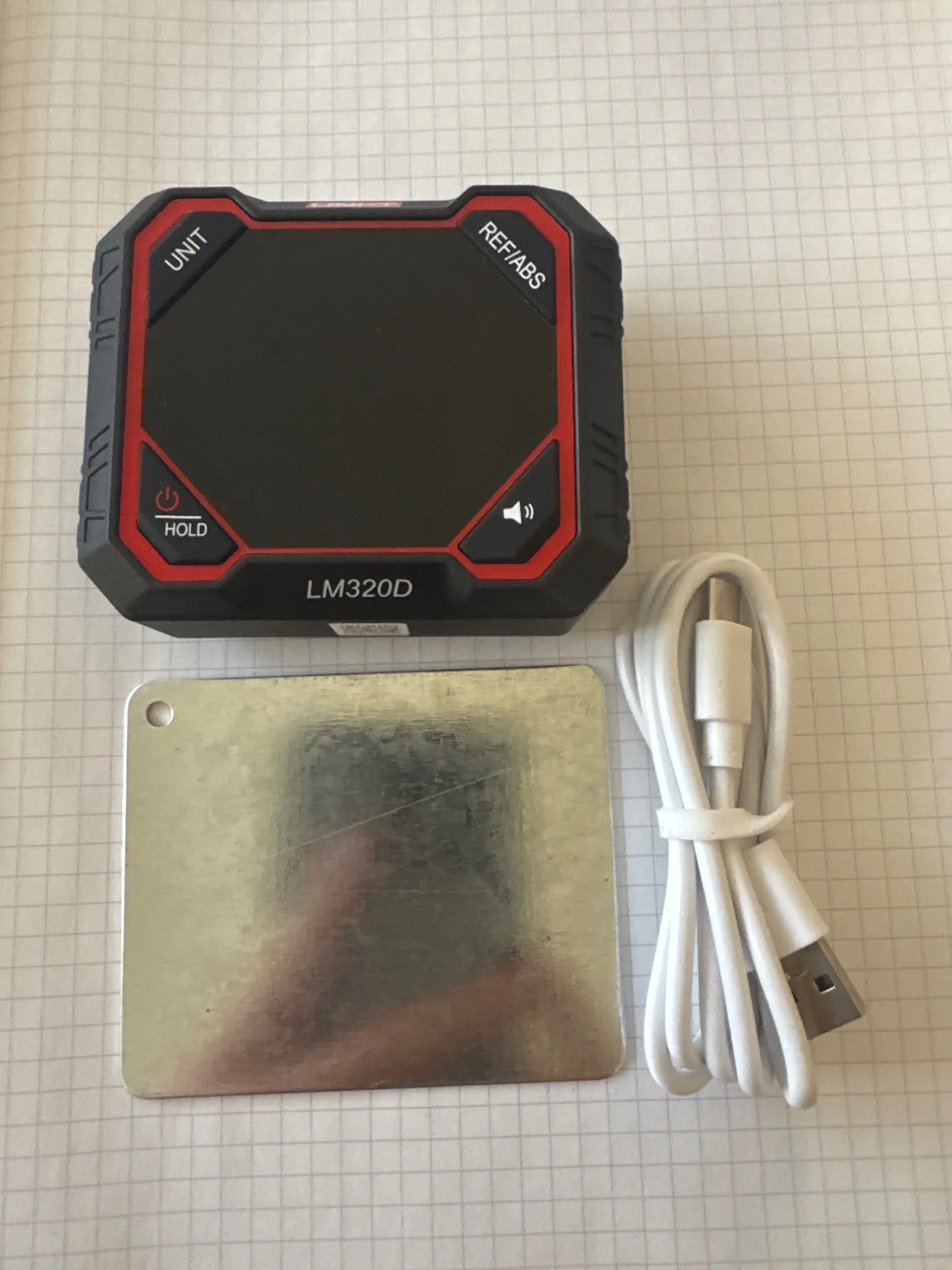

Good quality and accurate. Comes with a metal plate to help mount it
